Contemporary Ring Gate Latch - Mid-Post Mount (Build Your Own Package)

by     |     SKU: 6152-L6SP     |     Ships Within: 3 days.

Set includes gate stop. The Contemporary Ring Gate Latch is a two-sided gravity gate latch. You may add hinges and other accessories to this order. Check out the Fast Facts    |    Read Detailed Product Information
This setup is for gates that are hung centered (not flush) between two posts. Item 6149-LDSP is for a flush application. This latch includes a gate stop.

Write a Review
MSRP: $177.00
$177.00
(You save $14.16 )

Fast Facts

• Finish: Black Polyester Powder Coat
• Material: Stainless Steel latch-arm, limiter and catch. Aluminum alloy backplate and ring.
• Mechanism: Gravity
• Fits gates up to 5" thick
• Set includes: Two-sided Gate Latch, Gate Stop, Fasteners
• Optional add-ons: Hinges, Cane Bolt, Dummy Handle
Dimensions
Backplate: 2.5" w x 4" high
Ring diameter: 3"
Catch: This latch requires 1" of space between gate and post
Limiter: 3/4" W x 3-3/4" H
4-1/2” Arm Length (measured from the center of the ring handle to the end of the arm)
1-1/2" projection on the latching side; 1" on the ring-only side
Download Cutsheet
FAQs
Does this work for in-swing and out-swing gates?
This latch accommodates both in-swinging and out-swinging gates. For out-swinging gates, the latching portion of the set is installed on the side of the gate that it swings toward.
How do I cut the metal spindle down if my gate thickness is less than 5"?
You can cut the spindle down with a hacksaw.
What is a gate stop?
Learn More.
What is the Warranty?
Warranty
Snug Cottage Hardware, LLC guarantees our BPPCG product. We will replace free of charge any BPPCG product that breaks and is found defective for the life time of the original purchaser. Product must have been installed and maintained as per instructions supplied with original product. More details available here.
Returns

Non-custom merchandise is returnable or exchangeable within 30 days of delivery. We charge a 15% restocking fee for returns (nothing for exchanges). Products must be received in original, uninstalled condition.

Custom-produced items (stone doorbells, address plaques) and are not returnable.

The return process in a nutshell:

  1. – Request a return and receive an RGA e-mail with instructions.
  2. – You’ll ship back the product(s) you want to return.
  3. – When product(s) is received, we’ll confirm product is undamaged and resellable.
  4. – Refund, less 15% restocking fee, will be issued.

To receive a full refund, the original item MUST be in new condition and returned:

  • Still in sealed plastic packaging inside product boxes (as originally received)
  • Without dirt or sawdust
  • Without damage to product finish from incomplete protection during shipment

All returned items are thoroughly inspected, and any item(s) returned in a condition deemed as no longer sellable will not be refunded.


Initiate a Return Now
What is the Return Policy?
Refer to our returns page for information.

Contemporary Ring Latch - Install in the center of a post or column
Stainless Steel Material in Satin Black Finish

This Contemporary Ring Gate Latch accommodates in-swinging and out-swinging gates. On out-swinging gates, the latching portion is installed on side of the gate that it swings toward.

The latch-arm is made of stainless steel for additional strength; limiter and catch are also made of stainless. Backplates and rings are made of zinc-aluminum alloy. All parts are coated with black polyester powder coat finish. The finish is a satin black

No handing is required for this latch. The latch is operable from both sides of the gate. Fits gates up to 5" thick.

Each latch comes with the latch and a gate stop. Installation instructions available here.

NOTE: This gate latch set requires a gap of 1" between post and gate.

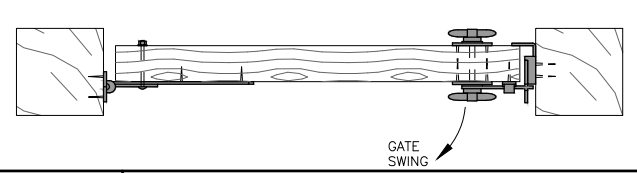

Example 1:

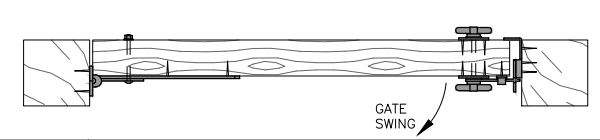

Example 2:



Details of this gate latch:

  • Material: Stainless Steel latch-arm, limiter and catch. Aluminum alloy backplate and ring.
  • Mechanism: Gravity
  • Finishes available : Black Polyester Powder Coat
  • Set includes gate latch set and gate stop, stainless steel fasteners.
  • Fits gates up to 5" thick.
    For thicknesses shorter than 5", you will cut down the included aluminum spindle on site (using a hacksaw).
  • Operable from both sides.
  • Suitable for in-swinging and out-swinging gates.
  • Handing not required with order.

Dimensions of the gate latch

  • Backplate: 2.5" w x 4" high
  • Ring diameter: 3"
  • Catch: This special strike plate requires a 1" gap between gate and post/column.
  • Limiter: 3/4" W x 3-3/4" H
  • 4-1/2” Arm Length (measured from the center of the ring handle to the end of the arm)
  • 1-1/2" projection on the latching side; 1" on the ring-only side

Important: Please check that the dimensions of this gate latch will fit your particular style of gate!

Technical Info

Hardware Tips

Take a look at the Gate Hardware section of our blog for helpful suggestions.

Resources

Cutsheet available here or on our Technical Information page.

Have more questions? We discuss tons of background information in our blog entry titled Gate Latch Information Series.

Please review our Resources page for general information about all our products.

FAQs

Read our FAQs for additional information about various products and policies.

Take a look at the Answering Customer Questions section of our blog for a deeper look at same of our product types and manufacturers.

Product Images
We're always looking for new photos of our hardware installed on your projects! Send us your photos for a chance to win $100 off your next order!
Warranty & Return Information
Warranty
Snug Cottage Hardware, LLC guarantees our BPPCG product. We will replace free of charge any BPPCG product that breaks and is found defective for the life time of the original purchaser. Product must have been installed and maintained as per instructions supplied with original product. More details available here.
Returns

Non-custom merchandise is returnable or exchangeable within 30 days of delivery. We charge a 15% restocking fee for returns (nothing for exchanges). Products must be received in original, uninstalled condition.

Custom-produced items (stone doorbells, address plaques) and are not returnable.

The return process in a nutshell:

  1. – Request a return and receive an RGA e-mail with instructions.
  2. – You’ll ship back the product(s) you want to return.
  3. – When product(s) is received, we’ll confirm product is undamaged and resellable.
  4. – Refund, less 15% restocking fee, will be issued.

To receive a full refund, the original item MUST be in new condition and returned:

  • Still in sealed plastic packaging inside product boxes (as originally received)
  • Without dirt or sawdust
  • Without damage to product finish from incomplete protection during shipment

All returned items are thoroughly inspected, and any item(s) returned in a condition deemed as no longer sellable will not be refunded.


Initiate a Return Now
Shipping & Lead Time
Availability:
Ships Within: 3 days.

Review our shipping rates and policies for more information.

X

A gate stop is needed on all gates. The stops that we have are attached to the gate and catch on the post when the gate is pushed closed. The stop maintains the proper alignment so that the latch can latch, but won’t be damaged if the gate is slammed.

Watch our installation video to get a better idea of the gate stop's usage.
